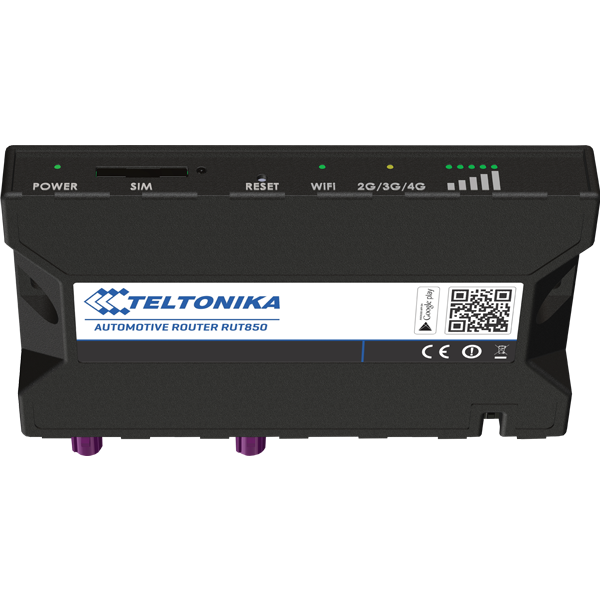

Teltonika RUT850 LTE WLAN Mini reititin autoon - asuntovaunuun - traktoriin

4G (LTE) – Cat 4 jopa 150 Mbps, 3G – Jopa 42 Mbps, 2G – Jopa 236.8 kbps.

Paketissa mukana:

• Reititin RUT850
• Virtajohto 2m
• 2 x LTE antenni (teippikiinnitys, FAKRA-D, 3 m johto)
• 2 x kiinnitysruuvi
• 2 x kiinnitysteippi
• 2 x kiinnityskoukku
• Pikaohje

LTE:

• FDD 2100(B1)/1800(B3)/850(B5)/2600(B7)/900(B8)/800(B20) MHz TDD
• 2600(B38)/2300(B40)/2500(B40) MHz
• Up to 150/130 Mbps downlink speed FDD/TDD
• Up to 50/35 Mbps uplink speed FDD/TDD
• All bands with diversity

UMTS:

• 2100(B1)/850(B5)/900(B8) MHz
• DC-HSPA+ mode: 42 Mbps downlink speed
• DC-HSPA+ mode: 5.76 Mbps uplink speed
• UMTS mode: 384 kbps DL, 384 kbps UL>
• RX diversity antenna

GSM/GPRS/EDGE:

• 1800(B3)/900(B8) MHz
• Power Class 4 (33dBm ±2dB) for GSM 850/900MHz
• Power Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
• Power Class E2 (27dBm ±3dB) for EDGE 850/900MHz
• Power Class E2 (26dBm +3/-4dB) for EDGE 1800/1900MHz
• GPRS: 85.6 kbps DL, 85.6 kbps UL
• EDGE: 236.8 kbps DL, 236.8 kbps UL

ELECTRICAL, MECHANICAL & ENVIRONMENTAL:

• Dimensions (H x W x D) 131 mm x 79 mm x 17 mm
• Weight 106 g
• Input voltage range 7 – 30 VDC
• Power consumption < 5 W
• Operating temperature -40 °C to 75 °C
• Storage temperature -45 °C to 80 °C
• Operating humidity 10 % to 90 % non-condensing
• Storage humidity 5 % to 95 % non-condensing

WiFi:

• IEEE 802.11b/g/n WiFi standards
• AP and STA modes
• 64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
• 2.401 – 2.495 GHz WiFi frequency range
• 20dBm max WiFi TX power
• SSID stealth mode and access control based on MAC address

Saatavilla olevat versiot
