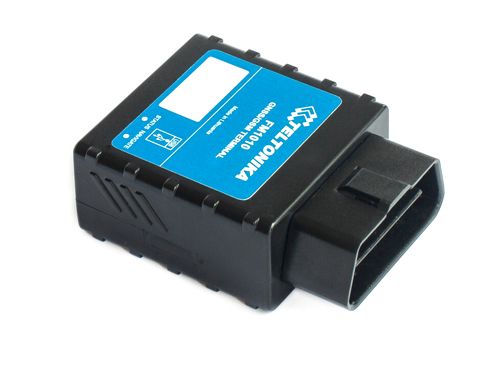

Teltonika FM1010 OBDII Seurantalaite autoon

Easy Plug & Play vehicle tracker

• Car tracking
• Configurable device behaviour
• To customize the data acquire & sending for different application and GSM costs saving
• Precise online tracking
• Under time, distance and corner alteration
• Integrated scenarios
• Over speeding
• Trip start and end detection
• Integrated back-up battery
• Remote logs reading
• For remote issue solving with manufacturer
• Low energy consumption in deep sleep mode

FM1010 is an easy plug and track realtime tracking terminal with GPS/GLONASS and  GSM connectivity,  which is  able  to  collect  device   coordinates  and  other  useful data to transfer them via GSM network to server .  This device is perfectly suitable for  applications  where  location  acquirement  of  remote  objects  is  needed:  fleet management,  car  rental  companies,  taxi  companies,  personal  cars  and  so  on..

Application:

• Track and trace
• Road assistance
• Personal car's and van tracking
• Fleet management
• Taxi companies
• Car rental companies

TECHNICAL DETAILS:

GSM:

• Quad-band 900/1800 MHz; 850/1900 MHz
• GPRS class 10 (up to 85,6 kbps);
• SMS (text/data)

GPS/GLONASS:

• NMEA protocol compatible. Messages: GGA, GGL, GSA, GSV, RMC, VTG, TXT
• 32 channel GPS/GLONASS receiver
• Up to -161 dBm sensitivity

Interface:

• 1 Digital Input Reserved for Ignition Status Monitoring (depends on vehicle type)
• Accelerometer
• Power supply (+10...+16) VDC
• Integrated back-up battery (optional)
• Internal High  Gain GSM antenna
• Internal High  Gain GPS/GLONASS antenna
• Dimensions: L(50,7mm)xW(49,6mm)xH(25mm)
• 2 Status LEDs
• USB Port
• Configuration and firmware upload (FOTA and via USB cable)

Features:

• Plug and Track
• Small and easy to mount case – directly to car OBDII connector
• Internal GSM antenna and Internal GPS/GLONASS antenna allow mount FM1010 much easier
• Real Time tracking
• Smart algorithm of data acquisition (time, distance, angle, ignition and event based)
• Sending acquired data via GPRS (TCP/IP and UDP/IP protocols)
• Smart algorithm of GPRS connections (GPRS traffic saving)
• Operating in roaming networks (preferred GSM providers list)
• Events on I/O detection and sending via GPRS or SMS.
• Scheduled 24 coordinates SMS sending when GPRS not available
• 5 geofence zones (rectangular or circle)
• Auto  Geofencing  crested  for  car  towing  detection  and  car  theft  prevention
• Deep Sleep mode (less than 2  mA power  consumption)
• FOTA (firmware updating via GPRS)
• 3  operational  modes (Home,  Roaming,  Unknown)  based  on  operator
• Integrated  scenarios:
• Over  speeding  to  secure  driver  and  prevent  penalties
• Trip  start  and  end  detection
• FM1010  supports  a  remote  logs  reading
• FM1010  supports  remote  diagnostic  logs  functionality  using  GPRS.  Possible  issues  resolving  becomes faster .  Manufacturer  can  read  logs  remotely  using  SMS/GPRS  to  diagnose  the  FM1010  and  timely respond  to  the  fault.
